As t approaches , the voltage wave reduces to

  The transients in the presence of an arbitrary load can be traced in a similar manner.

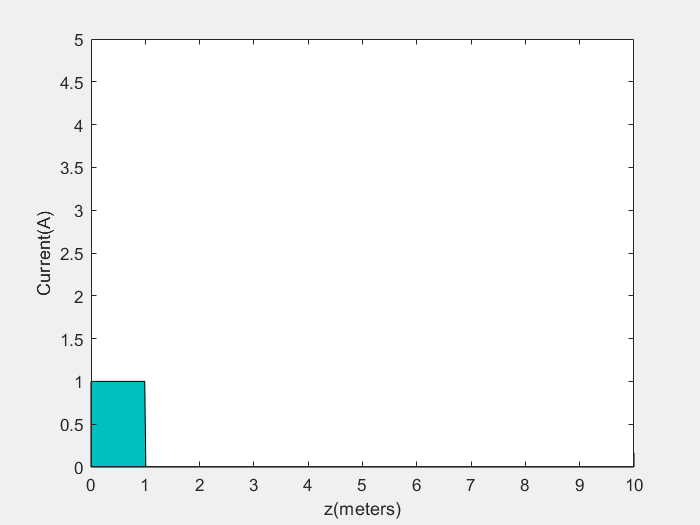

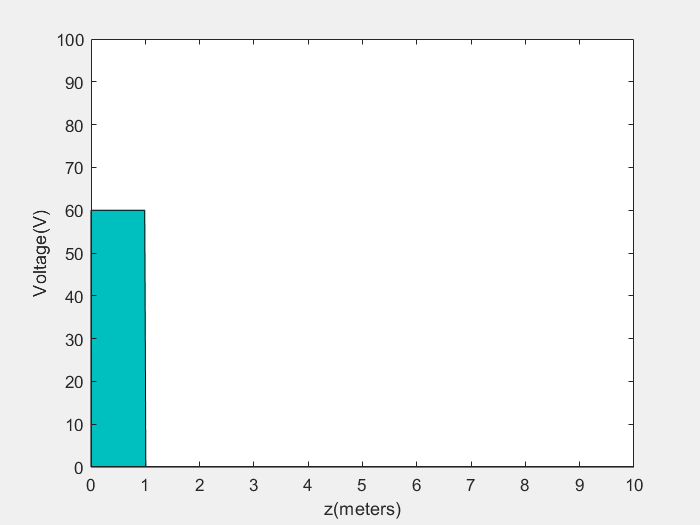

  The Animation below show the the value of voltage and current versus pisition (along z-axis).
